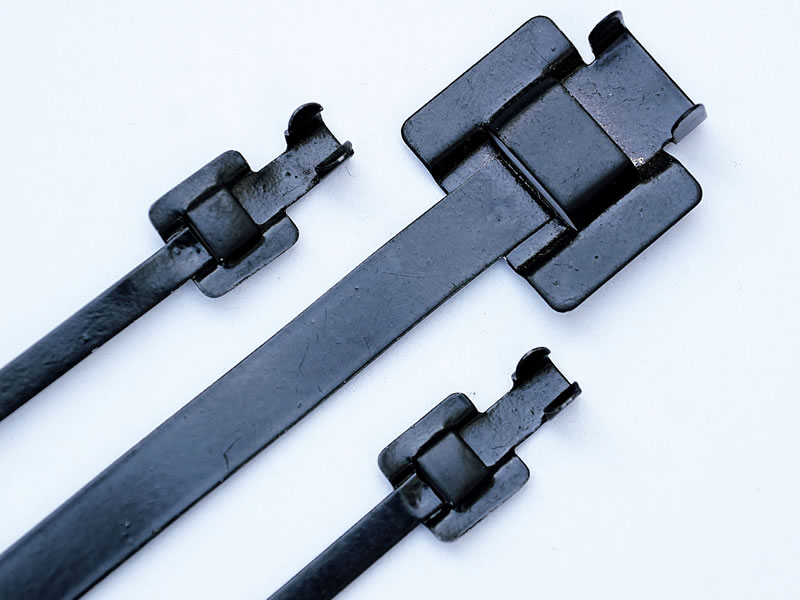

Releasable Type Stainless Steel Cable Ties provides easy and quick installations because of its unique design with buckle. Fasten-unfasten-refasten means greater flexibility with Releasable type Cable Ties.
Available in Grade 316 & 304 Coated or Un-coated, in 6.3 mm and 9.5 mm widths and various lengths.
The normal operating range for the uncoated ties version is -40°C to +325°C approximately. For coated version normal operating range is -60°C to +170°C. It is available in wide choice of colors. Coated ties have better weathering properties with excellent resistance to corrosion, radiation and abrasion.
Operating range of non toxic halogen free Polyester fully coated roller ball ties is -80oC to +150oC. it is available in wide choice of colours.
Type: Releasable Coated and Un-coated
Width: 6.3 mm and 9.5 mm
Material: SS 304 & SS 316
| PRODUCT CODE | WIDTH (in mm) |
LENGTH (in mm) |
MAXIMUM BUNDLE DIA. (in mm) |
|---|---|---|---|
| 63RLU-316-150 | 6.3 | 150 | 35 |
| 63RLU-316-230 | 6.3 | 230 | 60 |
| 63RLU-316-250 | 6.3 | 250 | 75 |
| 63RLU-316-300 | 6.3 | 300 | 85 |
| 63RLU-316-330 | 6.3 | 330 | 95 |
| 63RLU-316-400 | 6.3 | 400 | 115 |
| 63RLU-316-450 | 6.3 | 450 | 130 |
| 63RLU-316-520 | 6.3 | 520 | 155 |
| 63RLU-316-630 | 6.3 | 630 | 190 |
| 63RLU-316-760 | 6.3 | 760 | 230 |
| 63RLU-316-800 | 6.3 | 800 | 240 |
| 63RLU-316-850 | 6.3 | 850 | 260 |
| 63RLU-316-1000 | 6.3 | 1000 | 300 |
| 95RLU-316-150 | 9.5 | 150 | 35 |
| 95RLU-316-230 | 9.5 | 230 | 60 |
| 95RLU-316-250 | 9.5 | 250 | 75 |
| 95RLU-316-300 | 9.5 | 300 | 85 |
| 95RLU-316-330 | 9.5 | 330 | 95 |
| 95RLU-316-400 | 9.5 | 400 | 115 |
| 95RLU-316-450 | 9.5 | 450 | 130 |
| 95RLU-316-520 | 9.5 | 520 | 155 |
| 95RLU-316-630 | 9.5 | 630 | 190 |
| 95RLU-316-760 | 9.5 | 760 | 230 |
| 95RLU-316-800 | 9.5 | 800 | 240 |
| 95RLU-316-850 | 9.5 | 850 | 260 |
| 95RLC-316-1000 | 9.5 | 1000 | 300 |
MINIMUM LOOP TENSILE STRENGTH:
6.3 mm width Un-coated & Coated - 400 lbs
9.5 mm width Un-coated & Coated - 500 lbs
| PRODUCT CODE | WIDTH (in mm) |
LENGTH (in mm) |
MAXIMUM BUNDLE DIA. (in mm) |
|---|---|---|---|
| 63RLC-316-150 | 6.3 | 150 | 35 |
| 63RLC-316-230 | 6.3 | 230 | 60 |
| 63RLC-316-250 | 6.3 | 250 | 75 |
| 63RLC-316-300 | 6.3 | 300 | 85 |
| 63RLC-316-330 | 6.3 | 330 | 95 |
| 63RLC-316-400 | 6.3 | 400 | 115 |
| 63RLC-316-450 | 6.3 | 450 | 130 |
| 63RLC-316-520 | 6.3 | 520 | 155 |
| 63RLC-316-630 | 6.3 | 630 | 190 |
| 63RLC-316-760 | 6.3 | 760 | 230 |
| 63RLC-316-800 | 6.3 | 800 | 240 |
| 63RLC-316-850 | 6.3 | 850 | 260 |
| 63RLC-316-1000 | 6.3 | 1000 | 300 |
| 95RLC-316-150 | 9.5 | 150 | 35 |
| 95RLC-316-230 | 9.5 | 230 | 60 |
| 95RLC-316-250 | 9.5 | 250 | 75 |
| 95RLC-316-300 | 9.5 | 300 | 85 |
| 95RLC-316-330 | 9.5 | 330 | 95 |
| 95RLC-316-400 | 9.5 | 400 | 115 |
| 95RLC-316-450 | 9.5 | 450 | 130 |
| 95RLC-316-520 | 9.5 | 520 | 155 |
| 95RLC-316-630 | 9.5 | 630 | 190 |
| 95RLC-316-760 | 9.5 | 760 | 230 |
| 95RLC-316-800 | 9.5 | 800 | 240 |
| 95RLC-316-850 | 9.5 | 850 | 260 |
| 95RLC-316-1000 | 9.5 | 1000 | 300 |
