Stainless Steel Roller Ball Cable Ties

Self Locking Ball Type Stainless Steel Cable Ties provides a strong, durable bundling and fastening. Low weight, high strength of roller ball are designed for use in application where strength, vibration, weathering, corrosion extremes are a factor. It is more efficient and reliable than conventional fasteners. Quick and easy installation.

Available in Grade 316 & 304 Coated or Un-coated, in 4.6 mm and 7.9 mm widths and various lengths.

The normal operating range for the roller ball uncoated ties version is -80°C to +538°C approximately. For coated version normal operating range is -80°C to +150°C. It is available in wide choice of colors.

Minimum Loop Tensile Strength :

4.6 mm width Un-coated - 130 lbs

7.9 mm width Un-coated - 270 lbs

4.6 mm width Coated - 110 lbs

7.9 mm width Coated - 200 lbs

TECHNICAL DETAILS OF STAINLESS STEEL CABLE TIES

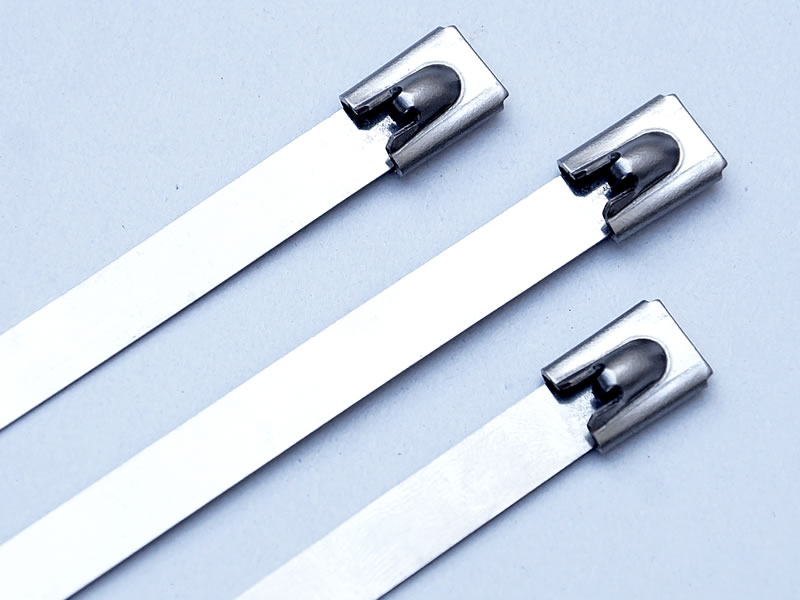

Type : Roller Ball Un-coated
Size : 4.6 mm OR 7.9 mm
Grade : SS316 or SS304

PRODUCT CODE WIDTH
(in mm)
LENGTH
(in mm)
MAXIMUM BUNDLE DIA.
(in mm)
46RBU-316-100 4.6 100 20
46RBU-316-125 4.6 125 30
46RBU-316-150 4.6 150 35
46RBU-316-200 4.6 200 50
46RBU-316-250 4.6 250 70
46RBU-316-300 4.6 300 85
46RBU-316-360 4.6 360 100
46RBU-316-450 4.6 450 130
46RBU-316-520 4.6 520 155
46RBU-316-680 4.6 680 200
46RBU-316-840 4.6 840 255
46RBU-316-1000 4.6 1000 305

79RBU-316-100 7.9 100 20
79RBU-316-125 7.9 125 30
79RBU-316-150 7.9 150 35
79RBU-316-200 7.9 200 50
79RBU-316-250 7.9 250 70
79RBU-316-300 7.9 300 85
79RBU-316-360 7.9 360 100
79RBU-316-450 7.9 450 130
79RBU-316-520 7.9 520 155
79RBU-316-680 7.9 680 200
79RBU-316-840 7.9 840 255
79RBU-316-1000 7.9 1000 305

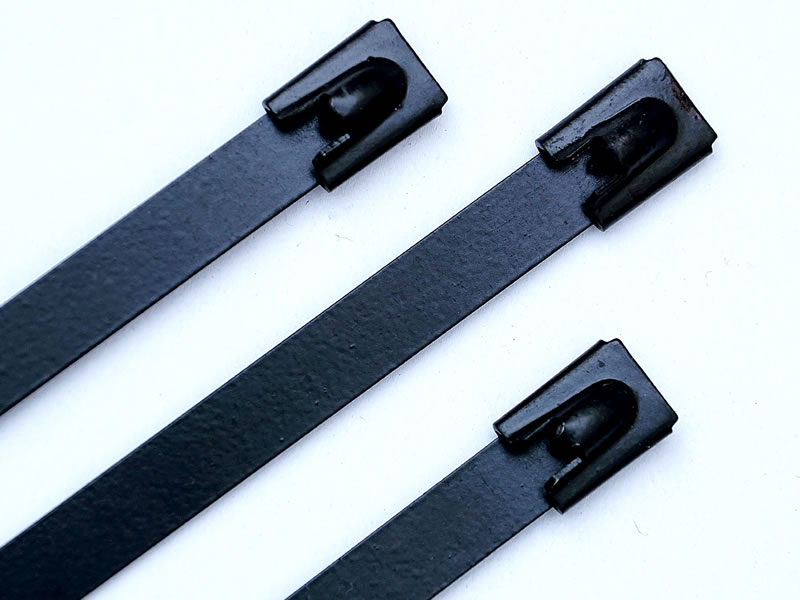

Type : Roller Ball Coated
Size : 4.6 mm OR 7.9 mm
Grade : SS316 or SS304

PRODUCT CODE WIDTH
(in mm)
LENGTH
(in mm)
MAXIMUM BUNDLE DIA.
(in mm)
46RBC-316-100 4.6 100 20
46RBC-316-125 4.6 125 30
46RBC-316-150 4.6 150 35
46RBC-316-200 4.6 200 50
46RBC-316-250 4.6 250 70
46RBC-316-300 4.6 300 85
46RBC-316-360 4.6 360 100
46RBC-316-450 4.6 450 130
46RBC-316-520 4.6 520 155
46RBC-316-680 4.6 680 200
46RBC-316-840 4.6 840 255
46RBC-316-1000 4.6 1000 305

79RBC-316-100 7.9 100 20
79RBC-316-125 7.9 125 30
79RBC-316-150 7.9 150 35
79RBC-316-200 7.9 200 50
79RBC-316-250 7.9 250 70
79RBC-316-300 7.9 300 85
79RBC-316-360 7.9 360 100
79RBC-316-450 7.9 450 130
79RBC-316-520 7.9 520 155
79RBC-316-680 7.9 680 200
79RBC-316-840 7.9 840 255
79RBC-316-1000 7.9 1000 305
  • Ball Lock Type Cable Ties are also available in widths of 12 mm and 16 mm with various lengths for special requirements.
  • Intermediate lengths are available on demand for special requirements.
  • Mentioned products are also available in material SS 304, use 304 instead of 316 in Product Code e.g. 46RBU-316-100 shall be 46RBU-304-100.
